CS-XCM Kit

CHX / T3002C / MS-7 / SC-110

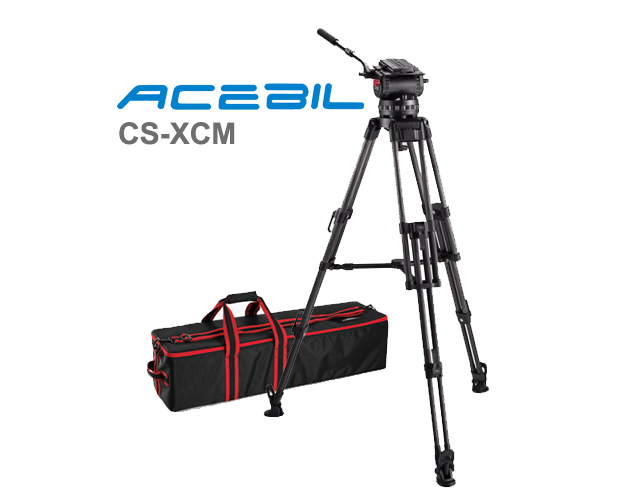

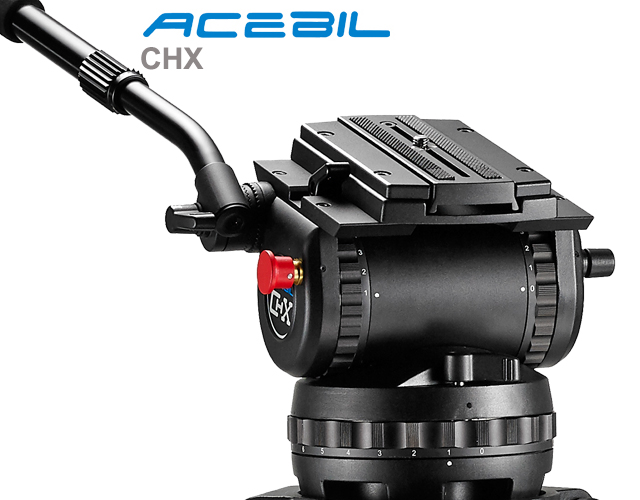

The CS-XCM Professional Tripod System includes a 150mm CHX fluid head, T3002C carbon fiber tripod, MS-7 mid spreader, and an SC-110 carry case.


The CS-XCM Professional Tripod System from Acebil includes a 150mm CHX fluid head, T3002C carbon fiber tripod, MS-7 mid spreader, and an SC-110 carry case. The tripod features a two-stage design and Carbon Fiber construction that supports loads up to 45kg / 99lb. It provides a height range from 85-170cm / 33.5”-66.9” and comes equipped with a sliding quick-release plate and pan bar.

  • 150mm ball
  • Two Stage Carbon Fiber Tripod
  • Supports loads up to 45kg / 99lb
  • Height range: 85-170cm / 33.5”-66.9”

Payload 50kg / 110lb
CB Payload 21~36kg / 46~79lb
Counter Balance 8 Steps + 3 Switch
Pan Drag Free + 8 Steps
Tilt Drag Free + 8 Steps
Tilt Angle +90° / -75°
LED Bubble Level Illumination Yes
Camera Plate Slide Plate
Plate Attachment 3/8" Screw
Spare Camera Screw 1/4" & 3/8" Screw
Slide Range +60 / -60 mm
Weight 12.5kg / 27.5lb
Height 85-170cm / 33.5”-66.9”
Ball Diameter 150mm
Leg Section 2 Stage
