CS-CINE90OB Kit
CINE90 / CINEOB / Mid Spreader / TC-130The CS-CINE90OB Professional Tripod System from Acebil includes a flat base CINE90 fluid head, OB Aluminum Tripod, Middle Spreader, and TC-130 case. The tripod features a single-stage aluminum design that supports loads up to 140kg / 308Ib.
CINE90 / CINEOB / Mid Spreader / TC-130

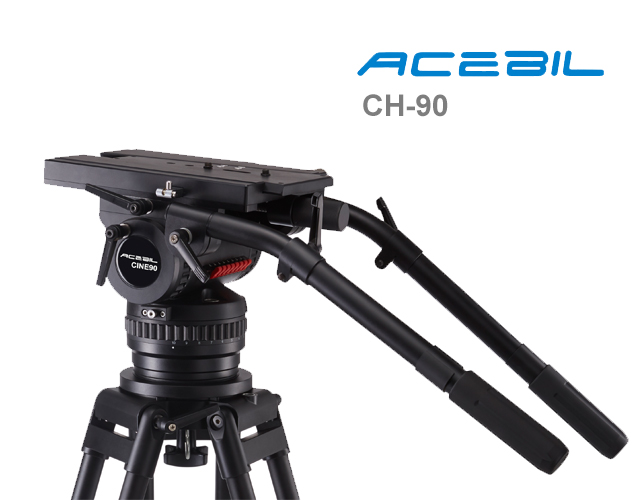

The New CINE90 Professional fluid head from Acebil is a beautiful broadcast setup. Perfect for EFP / HD camera configurations weighing up to 60kg. It features a flat base, extra large camera plate, with adjustable drag and counterbalance.
- 150mm Flat Base
- Heavy Duty Aluminum Tripod
- Supports loads up to 90kg / 198lb
- Height range: 1.03-1.61m / 40.6-63.4"
| Payload | 90kg / 198lb |
|---|---|
| CB Payload | 0-60kg / 0-132lb |
| Counter Balance | 18 Steps (1-10 + 8 Boost Steps |
| Pan Drag | 10 Steps |
| Tilt Drag | 10 Steps | Tilt Angle | +90° / -60° |
| LED Bubble Level Illumination | Yes |
| Camera Plate | V Plate |
| Plate Attachment | Double 3/8" Screw |
| Spare Camera Screw | 1/4" & 3/8" Screw | Slide Range | 180mm |
| Weight | 33.4kg / 73.7lb |
| Height | 1.03-1.61m / 40.6-63.4" |
| Ball Diameter | Flat Base |
| Leg Section | Single Stage |
