HDF-700V

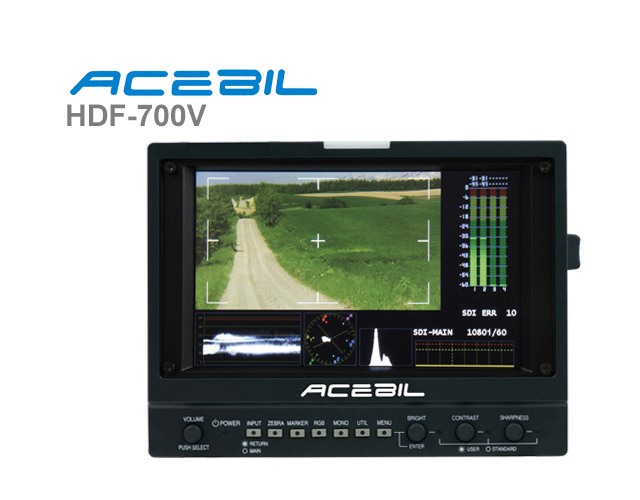

HDF-700V View FinderThe New HDF-700V View Finder is the real professional View Finder & Field Monitor with a high brightness panel. A brilliant 7" LCD panel and a robust body ensures high quality monitoring everytime.
HDF-700V View Finder
The New HDF-700V View Finder is the real professional View Finder & Field Monitor with a high brightness panel. A brilliant 7" LCD panel and a robust body ensures high quality monitoring everytime. Packed with functions like, easily adjustable peaking, advanced Zebra function, Vector scope & Waveform scope, return video with P&P function, level meter & monitoring of audio, and TC Tally function.
- Brilliant 7" LCD Panel
- Adjustable Peaking Function
- Advanced Zebra Function
- Vector Scope & Waveform Scope Function
- Return Video Display
- P-in-P Function
- Audio Level Meter & Monitoring
- Return Video Display
- TC Tally Function
LCD Panel | TFT-LCD (Active Matrix TN) |
---|---|
Size | 7-inch diagonal) |
Resolution | 800(H) x 480(V) x 3 RGB |

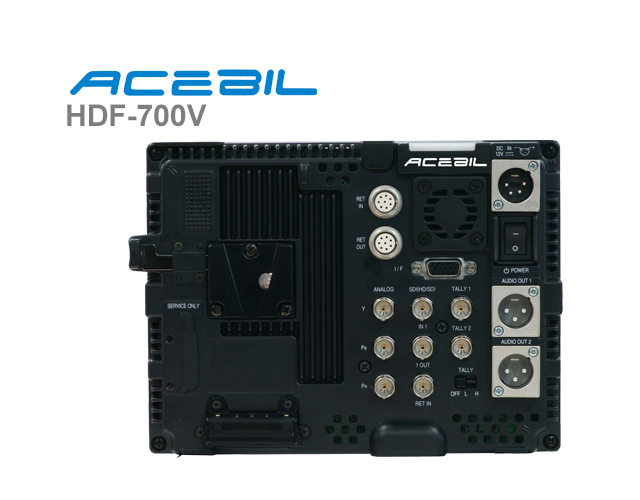

SDI (HD/SD)Input | 2 x BNC |
SDI (HD/SD) Output | 1 x BNC: Loop Through |
HD Component Input | 3 x BNC : Component(Y / Pb / Pr) |
Tally Input | 1 x BNC, User selectable type: Voltage or ON/OFF |
RET Control Input / Output | 2 x 8-pin (Input / Output) |
Audio Output | 1x XLR Stereo Jack(Headphone) |
Weight | Approx. 1.0 kg |
Dimensions(W x H x D) | Approx. 195 x 153 x 50 mm |
Video Format | 1080p/30 - 1080i/60 - 720p/60 - 480i/60 |
