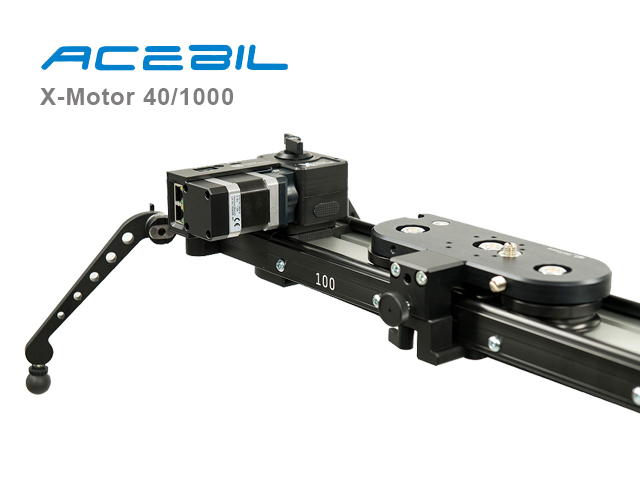

X-Motor 40/1000

X-Motor 40/1000

Co-Manufactured by SLIDEKAMERA
FLUID AND REPETATIVE MOTION

The right engine, with a precise mechanical gearbox result in a very versatile device. It allows not only a very fluid camera live action motion, but also works great for timelapse or stop-motion photography. Every movement can be programmed and repeated many times with the same precision. To avoid camera shake during shutter release, there is a shutter release cable in the set, compatible with the camera used for stop-motion or timelapse photography.


FLUID AND REPETATIVE MOTION
The right engine, with a precise mechanical gearbox result in a very versatile device. It allows not only a very fluid camera live action motion, but also works great for timelapse or stop-motion photography. Every movement can be programmed and repeated many times with the same precision. To avoid camera shake during shutter release, there is a shutter release cable in the set, compatible with the camera used for stop-motion or timelapse photography. The device works in a vertical position. It can handle cameras up to 4kg.Camera safety is very important. The drive stops the cart in case of power failure, that protects the equipement from falling down.

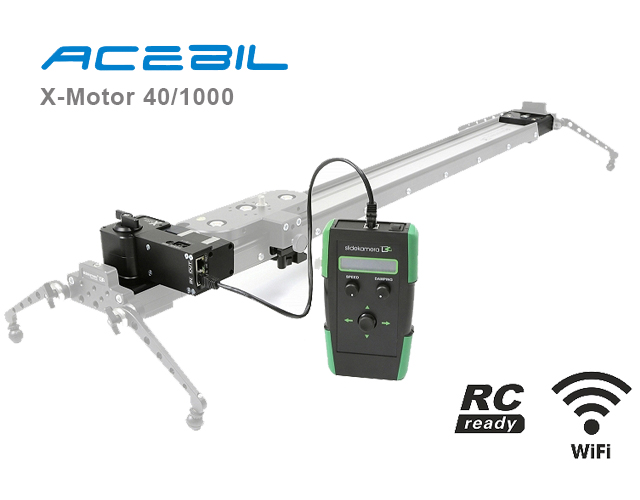

THE AIONTM IQ CONTROLLER
The AION IQ controller has many extended programs. VIDEO for live action, ANIMATION for stop-motion photography and the very popular TIMELAPSE. The 1/4” socket in the base of the controller enables it to be mounted to the cart with a 8” or 11” Magic arm.

AION IQ PROGRAMS:

VIDEO:
Free Ride Mode - allows the user to control the speed of the slider using joystick and adjusting knobs.
Recording Mode - records movements of the slider in order to play it back later in Playback mode.
Playback Mode - plays back movements of the slider saved in Recording mode.
Video Loop Mode - during VideoLoop mode slider automatically turns back and starts moving in the opposite direction once it reaches the end of movement range.

ANIMATION:
moves the camera on a programmed path during series of shots (drive can trigger the shutter by the cable connected to the camera).

TIMELAPSE:
designed for interval shots synchronized with a very slow movement of the cart.

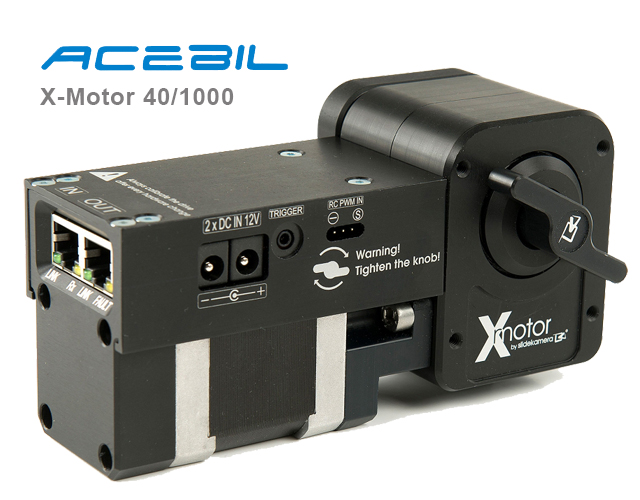

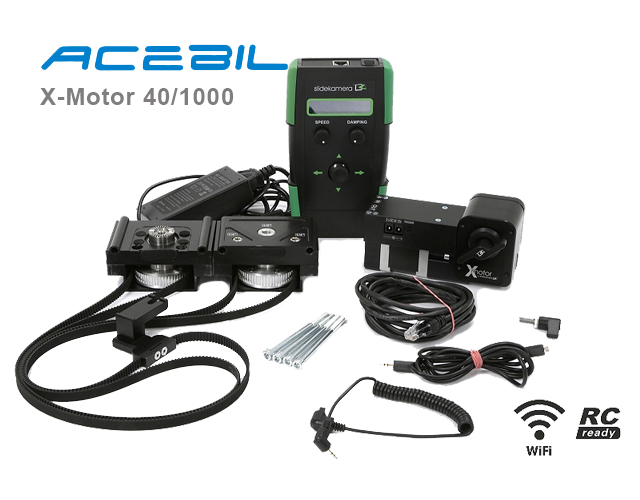

  • X-GEAR (drive with worm gear and housing with I/O ports)
  • 2 Heads
  • AION IQ controller
  • Cable connecting the motor with the controller
  • Shutter release cable to connect the motor with the photo camera
  • Shutter release cables to choose: WS-1, WS-2, WS-3, WS-4, WS-5, WS-6, WS-7, WS-8, WS-9
  • Power transmission belt
  • 12V power supply

Supply Voltage: 10..18V DC
Slider Cart Payload: Maximum payload for horizontal track: 4.5kg
Maximum payload for vertical track: 4kg
Power Consumption: Continuous horizontal track: max 1A @ 12V
Continuous vertical track with max. payload: 2,5A @ 12V
Cart Speed: Maximum 100mm/s - in VIDEO program
Minimum 100mm/999h - in TIMELAPSE program
Operation Temperature -10°C do 70°C
Weight 950g
